The ULTIMATE in guard patrol monitoring
The CCTV-PRO is a unique device which allows management to record and/or view in REAL-TIME exactly where guards have been and visually log any or all incidents that are encountered while patrolling. General patrols, break-ins, acts of vandalism, water leaks or ANY security issue encountered can now be viewed, stored and forwarded directly to your clients, both improving the service that your company provides and helping to reduce your liability by proving compliance.
FEATURES:
- Impact resistant aluminium alloy casing
- Super bright long-life LED array
- Dual operating modes –
- Mode 1:
Flashlight only with LED’s permanently fully on. Effective lighting distance is up to 50 metres
- Mode 2:
Light sensitive image transmission mode – LED’s automatically switch on and light intensity increases as insufficient ambient light is detected by camera. In Mode 2, images are transmitted wirelessly to a receiver and may be viewed in REAL-TIME via a Personal Video Recorder (PVR) as standard OR optionally to a PC if required (subject to distance and site limitations). Images may also be recorded onto SD card as standard OR optionally to PC if required. Transmitting distance from flashlight to PVR is typically between 250m and 500m in open space. For vertical space, 2-3 floors is realistic but is site dependent
| |

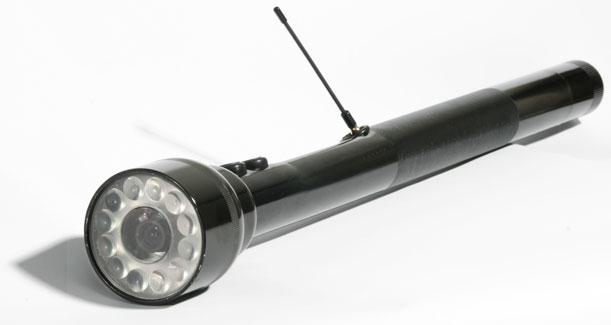

FLASHLIGHT SPECIFICATION:
- Rechargeable LED flashlight incorporating 10.8v 120mA Lithium battery giving approximately 150 minutes of continual use between charges
- Low current 120mA 12pcs focusing bright LED
- - Dimensions: 490x56x30mm
- - Weight: 630grams
PVR SPECIFICATION:
- The PVR system incorporates a 2.5” TFT LCD screen and is supplied with a 1gb SD card as standard. High-quality video images are stored in MP-4 format, 1gb of memory being adequate to record continually for around 120 minutes
- The PVR system incorporates rechargeable Ni-MH batteries which provide power for approximately 150 minutes of continual use between charges. It is light-weight, fully portable and is supplied in a woven nylon carrying case with belt attachment loop. A shoulder strap is also supplied as standard.
- - Dimensions: 140x110x90mm
- - Weight: 800grams (approx)
| |
|
|
|
The items below are supplied as standard
- Carrying case for PVR
- Shoulder strap for carrying case
- O-ring for attaching flashlight to belt.
- 1gb SD card (upgradeable locally)
- Power supply for recharging Flashlight
- Power supply for recharging PVR

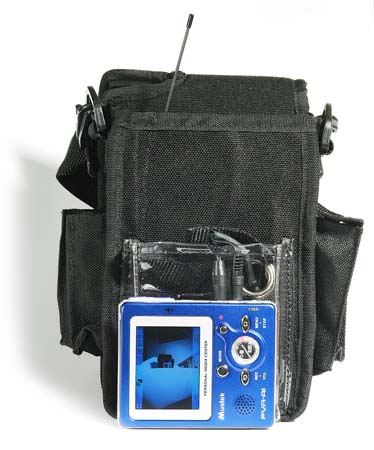

The image to the right shows the PVR system with woven nylon carry case. The PVR itself is powered by a rechargeable battery/receiver stored inside the carry case which is recharged without removal from the carry case. The flexible signal antenna (attached to the battery/receiver unit) can clearly be seen emerging from the carry case and may be positioned as required to improve reception.
The PVR itself fits inside the clear plastic pouch attached to the front of the carry case (removed here for demonstration purposes). The controls on the unit are operated through the plastic pouch and the SD card can be removed without removing the PVR itself from the pouch. |
|
| |
| |
| | | |
|
|
|
